> Two-layer unmanaged PoE switch
> Cascade can be realized via SFP fiber port
> MAC auto study and aging, MAC address list capacity is 8K
> Support IEEE802.3af, IEEE802.3at, Hi-PoE standard
> Conform IEEE802.3, IEEE802.3u, IEEE802.3ab/z and IEEE802.3X standards
> Industrial wide temperature design

Vendor Homepage:	www.dahuasecurity.com/products/productDetail/6981

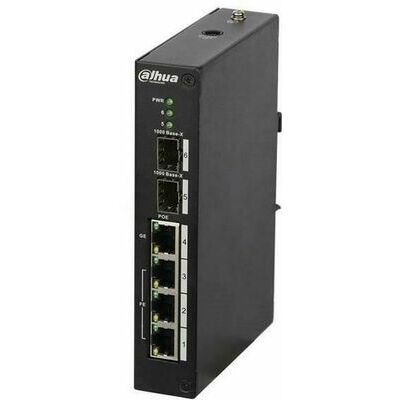

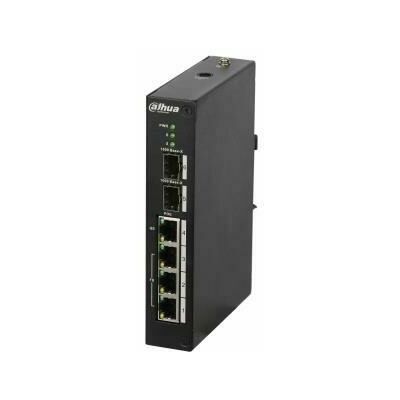

Model name:	PFS3206-4P-96
Switch type:	L2
Primary port count:	4
1000Base-X:	2
10Base-T / 100Base-TX:	3
10Base-T / 100Base-TX / 1000Base-T:	1
IEEE 802.3:	Yes
IEEE 802.3ab:	Yes
IEEE 802.3af:	Yes
IEEE 802.3at:	Yes
IEEE 802.3u:	Yes
IEEE 802.3x:	Yes
IEEE 802.3z:	Yes
Switching capacity:	6.8Gbps
Forwarding rate:	4.91Mpps
Dimensions:	150 x 100 x 30mm
Shipping box quantity:	1
Shipping Box Depth:	27cm
Shipping Box Height:	7.5cm
Shipping Box Weight:	1.22kg
Shipping Box Width:	24cm
Unit Brutto Volume:	0.00486m³
Unit Net Weight:	0.48kg
Unit Gross Weight:	1.22kg
CnCode:	85176200
Unit Box Width:	0.24
Unit Box Length:	0.27
Unit Box Height:	0.075
Full Description Line:	Type L2|3x10Base-T / 100Base-TX|1x10Base-T / 100Base-TX / 1000Base-T|2x1000Base-X|IEEE 802.3|IEEE 802.3ab|IEEE 802.3af|IEEE 802.3at|IEEE 802.3u|IEEE 802.3x|IEEE 802.3z|Switching capacity 6.8 Gbps|Forwarding rate 4.91 Mpps|Dimensions 150 x 100 x 30mm|Unit Net Weight 0.48 kg
Category Code:	SWI
