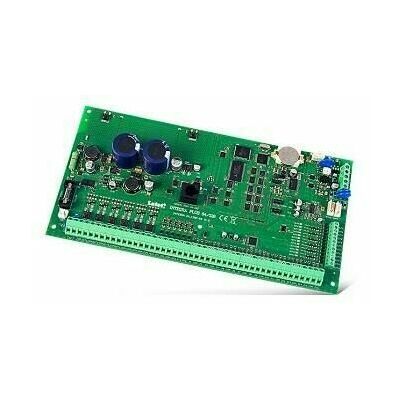

EN50131 Grade 3 compliant alarm control panel main board, with 16 up to 128 zones and outputs
- full compliance with EN50131 series of standards for Grade 3 equipment
- built-in advanced 2A+2A power supply with extended autodiagnostics
- up to 128 zones with programmable EOL value and support for 3 EOL configuration (only mainboard zones)
- USB port for programming via PC
- up to 32 partitions, 8 tenants
- up to 128 fully programmable outputs
- dedicated buses for communication with keypads and expansion modules
- system operation via LCD keypads, partition keypads, remote control keyfobs or proximity cards
- remote system operation with PC, smartphone or voice-guided telephone menu
- 64 independent timers for automatic control
- access control and home automation features
- non-volatile event log with 22527 entries, with on-line printing support
- support for 240+8+1 user codes
- firmware upgrades via PC

Vendor Homepage:	http://www.satel.pl/en/produktid/807
Max. number of outputs:	128
Max. number of zones:	128
Dimensions:	264 x 134 mm
Shipping box quantity:	1
Shipping Box Depth:	19.5cm
Shipping Box Height:	5.8cm
Shipping Box Weight:	0.65kg
Shipping Box Width:	15cm
Unit Brutto Volume:	0.001697m³
Unit Net Weight:	0.32kg
Unit Gross Weight:	0.65kg
CnCode:	85311030
Unit Box Width:	0.15
Unit Box Length:	0.195
Unit Box Height:	0.058
Full Description Line:	Max. number of outputs 128|Max. number of zones 128
Category Code:	CNP
