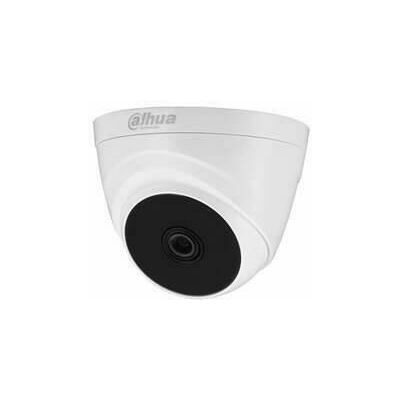

Experience 1080P full HD video and the simplicity of using existing cabling infrastructure  with  HDCVI.  The  Cooper  series  1080P  HDCVI camera features a compact design and offers a high quality image at a friendly price. It offers various vari-focal/fixed lens models with a multi-language OSD and HD/SD switchable output. Its structural flexibility and high cost-performance makes the camera an ideal choice for SMB solutions.
HDCVI technology guarantees real-time transmission at long distance without any loss. It supports up to 800m(1080P)/1200m(720P) trans-mission via coaxial cable, and up to 300m(1080P)/450m(720P) via UTP cable.


• 1920×1080 @25FPS max
• 1/2.7" 2 Megapixel CMOS
• Sensitivity: 0.04Lux/F1.85, 30IRE, 0Lux IR on
• 2.8 mm lens, angle of view: 93°
• True Day / Night with ICR Filter, Smart IR LED up to 20 m
• BLC / HLC / DWDR / 2D DNR / Multi-language OSD
• 1-channel BNC high definition video output / CVBS video output (Can switch)
• Plastic shell, IP67, outdoor/indoor use, -40°C~+60°C
• Power 12 VDC, 2.3W max
• Compatible with PFA135 junction boxes.

Vendor Homepage:	www.dahuasecurity.com/products/productDetail/24007
Camera design:	Eyeball
Network Camera Type:	HDTV/Megapixel/Outdoor
Video interface:	HDCVI
Pixel Resolution:	2Mega Pixel
Net camera resolution:	2 - 4MP
Sensor size:	1/2.7"
Focal Length:	2.8mm
Focal length:	2.8 - 3.5mm
Min. Illumination:	0.04Lux
IR Illumination:	Yes
Effective pixels:	1920(H)×1080(V)
Electronic Shutter Speed:	PAL: 1/25~1/100000s NTSC: 1/30~1/100000s
BNC:	1
Power options:	12V
Power supply requirements:	12 VDC
Power consumption:	2.3Watts
Environment:	Outdoor
Dimensions:	85 x 85 x 69mm
Shipping box quantity:	1
Shipping Box Depth:	11.5cm
Shipping Box Height:	8.5cm
Shipping Box Weight:	0.13kg
Shipping Box Width:	11cm
Unit Brutto Volume:	0.001075m³
Unit Net Weight:	0.09kg
Unit Gross Weight:	0.13kg
CnCode:	85258900
Category Code:	HSC
Full Description Line:	Type HDTV/Megapixel/Outdoor|Video interface HDCVI|Sensor size 1/2.7"|Focal Length 2.8mm|Min. Illumination 0.04 Lux|Effective pixels 1920(H)×1080(V)|Electronic Shutter Speed PAL: 1/25~1/100000s NTSC: 1/30~1/100000s|1xBNC|Power supply requirements 12 VDC|Dimensions 85 x 85 x 69mm
